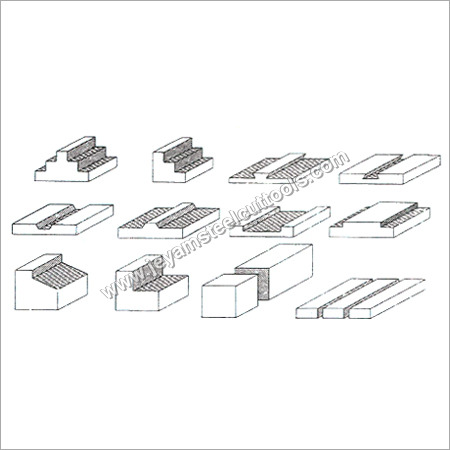

Large Cutting Workpieces

Large Cutting Workpieces
Large Cutting Workpieces
Product Code : 22
Brand Name : JEYAM STEELCUT TOOLS
Product Description

Features:

  • Used for shaping and fine cutting of heavy brittle metallic items
  • Resists corrosion, mechanical stress and impacts
  • These workpieces have high strength and easily fixes on the particular machine and devices.
  • Superior surface finish and anti-fracture nature
  • Demanded in several industries like metallurgical, automobile, engineering and mechanical
  • Well-suited with additional fixing and holding fences to grip on the items
  • Good resistance against corrosion and impact
  • As per the dimensions of the specimen workpiece frames can be can be easily separated or splinted

Advantages

  • Material saving
  • Time saving
  • Power saving
  • Reduces milling operation
  • Specially designed for tool room application

Standard Supply

  • Operating instructions manual
  • Step pulley with V-belts
  • Infinitely variable feed, pressure and feed valve
  • Mechanical blade tension
  • Speed reduction by gear box
  • Hydraulic power pack
  • Control panel-230VAC
  • Self cleaning wire brush
  • One work light

Special Accessories(optional)

  • Hydraulic vice
  • Hydraulic blade tension
  • Machine supporting table
  • Material supporting table
  • Variable frequency drive

Technical Specifications:

Model

JST-VT-350

JST-VT-450

JST-VT-550

JST-VT-800

JST-VT-1000

JST-VT-1500

Cutting Depth

350

450

550

800

1000

1500

Cutting Height

500

600

750

1000

1200

1750

Cutting Round

500

600

750

1000

1200

1750

Cutting Stroke

500

600

750

1000

1200

1750

Work table

500x700

600x800

750x900

1000x1200

1200x1500

1750x2500

Blade size

1.1x27x3760

1.1x34x4100

1.3x41x4860

1.3x41x6900

1.6x54x8800

1.6x67x12100

Blade speed

20-100 M/min

20-100 M/min

20-100 M/min

20-100 M/min

20-100 M/min

20-100 M/min

Saw Motor

2 HP

3 HP

4 HP

5 HP

7.5 HP

12 HP

Hydraulic Motor

0.5 HP

0.5 HP

1 HP

1 HP

1 HP

1.5 HP

Coolant Motor

0.16 HP

0.16 HP

0.16 HP

0.25 HP

0.25 HP

0.25 HP

Hydraulic Reservoir

30 Ltr

40 Ltr

50 Ltr

60 Ltr

80 Ltr

100 Ltr

Coolant Reservoir

40 Ltr

50 Ltr

50 Ltr

60 Ltr

80 Ltr

80 ltr

Machine Height

2000

2200

2400

3000

4200

5700

Machine Width

1250

1500

1750

2000

2700

3800

Machine Length

1250

1500

1750

2000

2700

3800

Machine Weight

800 kgs

1000 kgs

1500 kgs

4000 kgs

4500 kgs

9000 kgs
